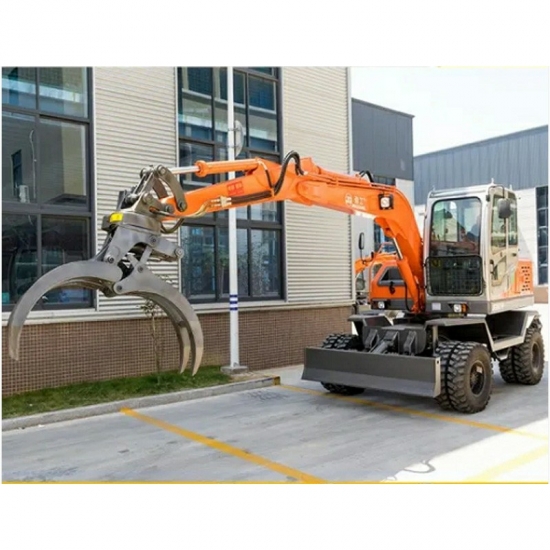

12.5 tons automatic wheel excavator with Cummings engine
| Features
1. It adopts the famous Cummins engine with high power and low fuel consumption, which meets China's third emission standard, and is equipped with a turbocharging and cooling system. It has the characteristics of high fuel efficiency, sufficient power reserve and strong durability.
2. The hydraulic system provides accurate flow control according to the load demand and matches the real-time power of the engine to achieve a significant energy saving effect.
3. Imported multi-way valve, combined with imported pipeline, can stably realize compound action and improve working efficiency.
4. Multiple oil filter systems and air filters provide tighter protection and more convenient maintenance.
5.The heavy-duty large and small arms with better installation durability, use cast steel products to increase the strength, and increase the endurance life by 1.5 times.
6.The walking and rotating motors are designed by Hyundai Heavy Industries to enhance durability.
7.The thickness of the lower support ring is increased, and the welding strength of the lower frame is increased by 20%.
| Main Parameters
|
Length*width*height |
7200*2500*3000mm |
|
Rated Power |
85KW |
|
Maximum Digging Force |
90KN |
|
Machine weight |
12500KG |
| Main Parts of Hydraulic Excavator
We provide more optional parts to complete more kinds of work. We provide a variety of work tools such as grabs, forks, pulverizers, etc. to meet your various application needs. In addition, a variety of fixtures are provided to optimize the performance of the machine. The auxiliary hydraulic lines are arranged on the base of the boom, making the auxiliary hydraulic circuit easier to install, thereby reducing the time, parts and costs required for installing work tools. Get more automatic wheel excavator from us quickly.
| Why Choose Us
1.Strict quality management produce effective and stable products to meet customers' needs.
2. Strict detecting system and advanced inspection equipment.
3.Professional sales team, quality inspection & report, maritime logistics guidance.
4.We grants our clients a twelve-month-period or 2000-hours warranty for any machine purchased from us.
5.We offer perfect facilities and comfortable environment and can provide training services to different users.
| Company
We are a leading manufacturer and exporter of wheel excavators, crawler excavators, sugarcane harvesters, sugarcane grab loaders, multi-function excavators. We have nearly 20 years of professional experience, and our products have been exported to many countries.

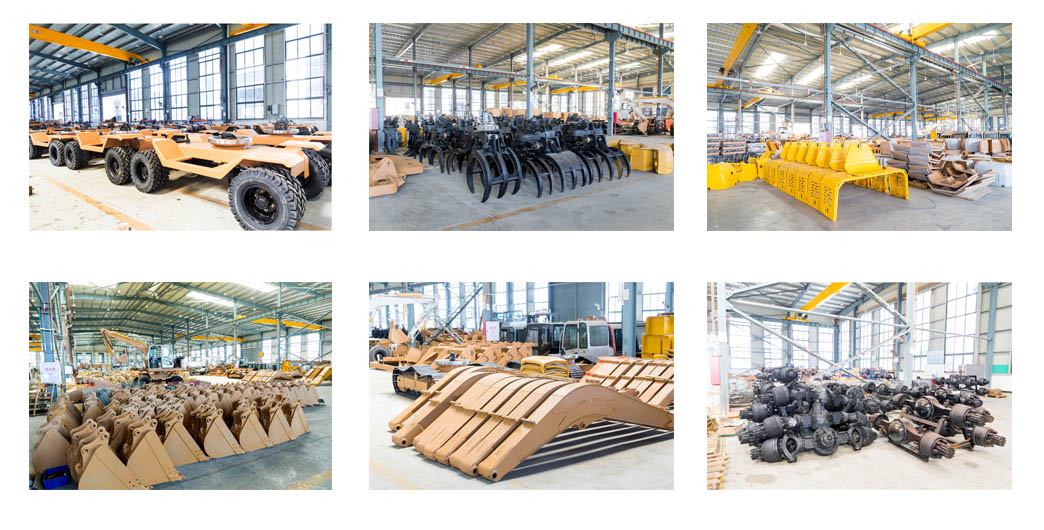

| Workshop Display
Our company abides by the business philosophy of "quality first, customer first" to ensure product quality. We have rigorous production procedures, and each production process is carried out under strict quality inspection.Only after passing the inspection can they move on to the next procedure. At the same time, we insist on creating a neat, clean and safe working environment.
| Process
| Exhibition Show
| Certificates
| SPECIFICATIONS | ||||||||||
| RANGE OF OPERATION | Boom length | 4200mm | ||||||||
| Arm length | 2000mm | |||||||||
| Maximum Digging Reach | 7200mm | |||||||||
| Maximum Digging Depth | 4100mm | |||||||||
| Maximum Digging Force | 90KN | |||||||||
| Maximum Digging Height | 8000mm | |||||||||
| Maximum Dumping Height | 6000mm | |||||||||
| Back-end radius of gyration | 2250mm | |||||||||
| DIMENSION | (Length*width*height) travel position | 7200*2500*3000mm | ||||||||
| Wheel base | 2750mm | |||||||||
| Track(Front/rear) | 1900mm | |||||||||
| Ground clearance of counterweight | 1260mm | |||||||||
| Min ground clearance | 310mm | |||||||||
| TECHNICAL PARAMETERS | Angle of rotation | 360° | ||||||||
| Machine weight | 12500kg | |||||||||
| Engine model | Cummings | |||||||||
| Rated Power | 93KW | |||||||||
| Rated Speed | 2200r/min | |||||||||
| Hydraulic system working pressure | 28Mpa | |||||||||
| Hydraulic system flow | 270L/min | |||||||||
| Metering gear pump | 2*63ml/r | |||||||||
| Max Hauling force | 76.5KN | |||||||||
| Walking speed | 25km/h | |||||||||
| Grade Climbing ability | 58%/30° | |||||||||
| Tyre model | 900.20 | |||||||||
| Volume Of Bucket | 0.4-0.5m3 | |||||||||
| Fqt Fuel Quantity | ≥6L/h | |||||||||
| Capacity Of The Fuel Tank | 200L | |||||||||
| Hydraulic Tank Capacity | 200L | |||||||||
