Heavy Duty Excavator

Material Handling Machine Wheel Grapple Excavator Orange Peel Grabber

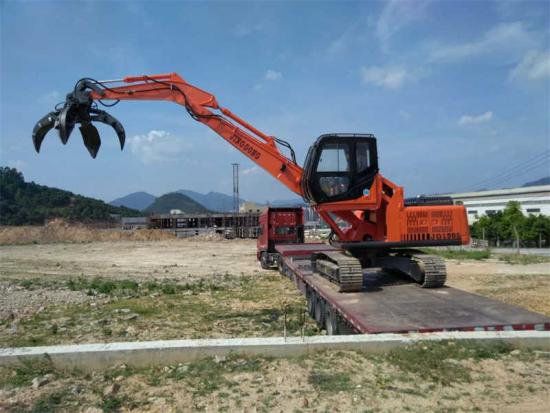

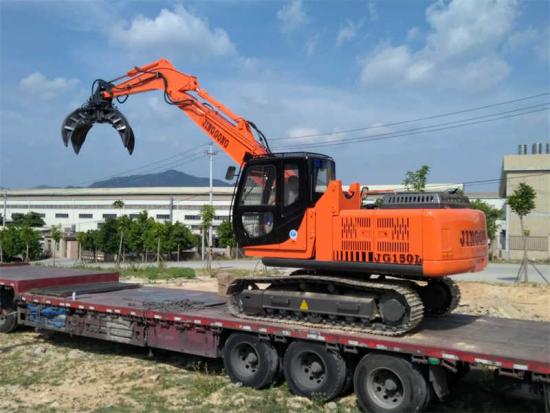

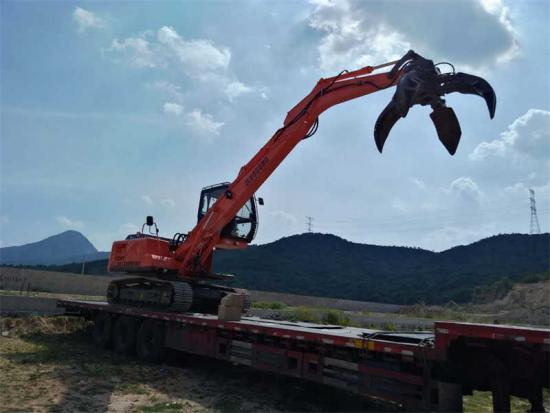

The Metal Grab Excavator Material Handler is a versatile piece of equipment designed for efficient handling of various materials in demanding industrial environments. With its robust metal grab attachment, it effortlessly grasps, lifts, and transfers heavy loads, making it an invaluable addition to any material processing operation.
  • Item NO.:

    JG-150Z
  • Lead Time:

    15-45days
  • Product Origin:

    China
  • Brand:

    JingGong
  • Shipping Port:

    xiamen
  • Payment:

    L/C or T/T
  • Color:

    blue/orange/yellow

how can we help you

how can we help you Contact Us
  • Product Detail
  • Technical Specifications

Material Handling Machine Wheel Grapple Excavator Orange Peel Grabber



Features Of Iron Scrap Grab

JG230S grapple wheel excavator  material handler offers more stability and control, with a reach that extends nearly 15 meters. Maximize efficiency with a state-of-the-art electro-hydraulic system, ergonomic cab. The JG230S material handler  helps you finish the job while achieving reductions of operating costs.





Main Parameters of Multi-Tine Grapples


Length*width*height

13850*3000*3500mm

Grabbing Capacity

0.8-0.9t
Rated Power
124KW

Machine weight

22000-26500KG


Main Parts of Hydraulic Excavator With Grappling Hook


Optional excavator working devices of JingGong excavator manufacturer china


We provide more optional parts to complete more kinds of work. We provide a variety of work tools such as grabs, forks, pulverizers, etc. to meet your various application needs. In addition, a variety of fixtures are provided to optimize the performance of the machine. The auxiliary hydraulic lines are arranged on the base of the boom, making the auxiliary hydraulic circuit easier to install, thereby reducing the time, parts and costs required for installing work tools.


Why Choose Us


We pride ourselves on delivering excellent customer service along with our top-quality machines. Our experienced sales team is knowledgeable about our products and is dedicated to helping customers select the perfect excavator for their specific project requirements. We also offer comprehensive after-sales support, including training, maintenance, and repair services.



Company


company photo of JingGong China excavator manufacturer

We are a leading manufacturer and exporter of wheel excavators, crawler excavators, sugarcane harvesters, sugarcane grab loaders, multi-function excavators. We have nearly 20 years of professional experience, and our products have been exported to many countries.


Workshop Display

Workshop display of Jing Gong china excavator supplier



Our products are known for their high quality, durability, and exceptional performance in even the most challenging work environments. We offer a range of excavators, grapple excavators, customized hirail special equipment, sugarcane harvesters. . Each of our models is crafted with precision and designed to maximize efficiency and safety.



Process

Process of excavator of Chinese excavator supplier (JingGong)

Exhibition Show

Exhibition show of Jing Gong excavator munufacturer

Certificates

certificates of JingGong China excavator manufacturer

Range of Operation
 Boom length 9000mm
Arm length 4000mm
Maximum Dumping Height 4500~10500mm
Farthest Grabing Distance 5500~12500mm
Max. lifting height of cab 1800~2500mm
Back-end radius of gyration 3500mm
Dimensions
(Length*width*height) Transport Dimensions 11500*3000*3500mm
Axle base  3300mm
Wheel base (front/rear) 1930mm
Ground clearance of counterweight 1350mm
Min ground clearance 400mm

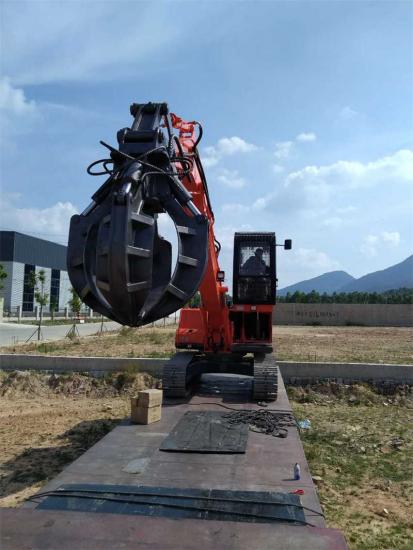

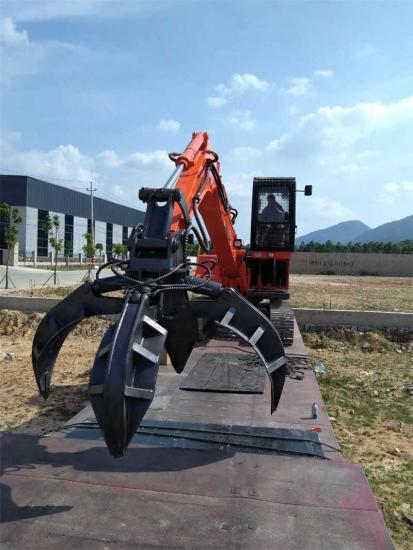

SPECIFICATION OF ORANGE PEEL GRAPPLE
 Angle of rotation 360°
 Weight of Grab 760Kg
Max. Opening Width of Grab 1530mm
Closing diam 880mm
Tech performance and specification
 Angle of rotation 360°
 Machine weight 25000kg
 Engine model 康明斯(国Ⅱ)Cummins(National StageⅡ)
Rated Power 133KW
 Rated Speed 2200r/min
 Volume of bucket 1.1m3
 Hydraulic system working pressure 32Mpa
Hydranlic system flow 450L/min
 Walking speed 25km/h
 Fqt Fuel Quantity  ≥12L/h
