Item NO.:
JG230LLead Time:
15-45 daysProduct Origin:
ChinaBrand:
JingGongShipping Port:
xiamenPayment:
FOBMarket Price:
$72000Color:
yellow/ orange/ blue
Tel/Whatsapp : +8613799243565
Fax : 13799243565
Email : sales@fjjgjx.com
Skype : +8613799243565

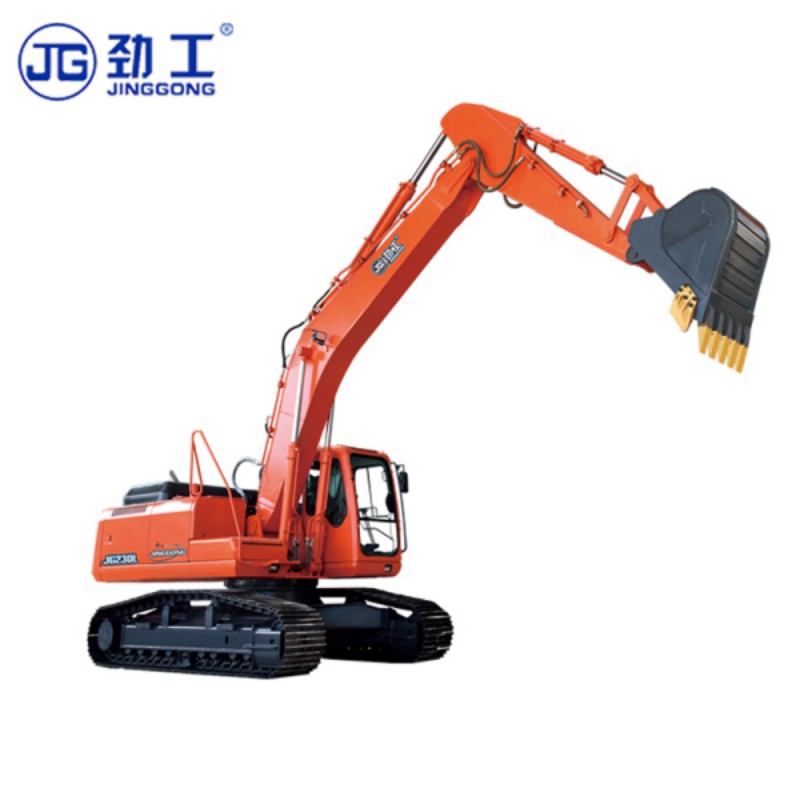

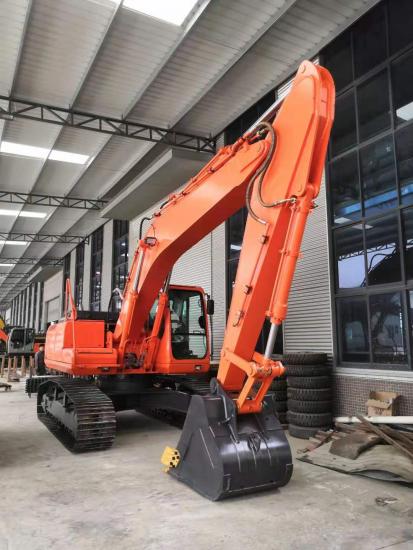

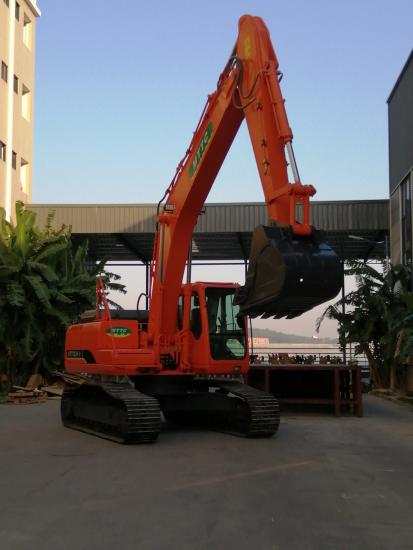

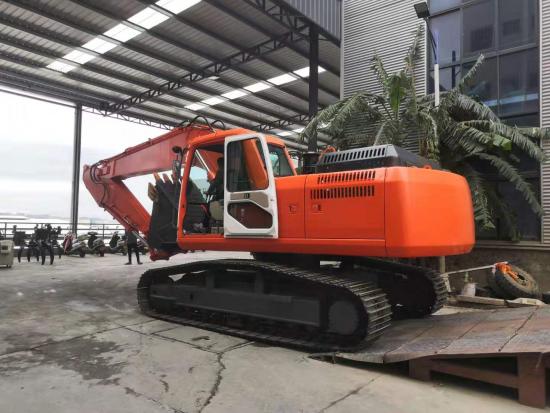

JG230L Hydraulic Crawler Excavator Railway Construction Machine CE Certified
l Features:
1. Full hydraulic pilot operation, advanced and perfect operation system, light and flexible
2. Equipped with multi-way valve, hydraulic system, walking motor from South Korea, advanced and reliable
3. Variable frame that can be easily extended and retracted by operating the joystick.
l Main Parameters:
(Length*width*height) travel position
9600*2990*3000mm
Machine weight
22000kg
Rated Power
128.5KW
l Shipping:
l Exhibition Show:
Company products can be divided into engineering, forestry, harvesting, railway machinery. There are mainly tire excavator, crawler excavator, bamboo and wood picking and loading machine, sugarcane picking and loading machine, multi-functional transfer machine, whole bar sugarcane combine harvester, railway sleeper changing machine, railway slag extractor and railway tamping machine.
| SPECIFICATIONS | ||||||||||
| RANGE OF OPERATION | Boom length | 5700mm | ||||||||
| Arm length | 2900mm | |||||||||
| Maximum Digging Reach | 9873mm | |||||||||
| Maximum Digging Depth | 6592mm | |||||||||
| Maximum Digging Force | 97KN | |||||||||
| Maximum Digging Height | 9660mm | |||||||||
| Maximum Dumping Height | 6850mm | |||||||||
| Back-end radius of gyration | 2840mm | |||||||||
| DIMENSION | (Length*width*height) travel position | 9600*2990*3000mm | ||||||||
| Wheel base | 2400mm | |||||||||
| Track(Front/rear) | 1660mm/1580mm | |||||||||
| Ground clearance of counterweight | 1060mm | |||||||||
| Min ground clearance | 285mm | |||||||||
| TECHNICAL PARAMETERS | Angle of rotation | 360° | ||||||||
| Machine weight7 | kg | |||||||||
| Engine model | YN36GB2/4102 | |||||||||
| Rated Power | 58.8KW | |||||||||
| Rated Speed | 2200r/min | |||||||||
| Hydraulic system working pressure | 20Mpa | |||||||||
| Hydraulic system flow | 110L/min | |||||||||
| Metering gear pump | 2*25ml/r | |||||||||
| Max Hauling force | 60KN | |||||||||
| Walking speed | 5.9-3.2km/h | |||||||||
| Grade Climbing ability | 70% | |||||||||
| Tyre model | 750.16 | |||||||||
| Volume Of Bucket | 0.2-0.3m3 | |||||||||
| Revolution Overdrive Pressure | 16Mpa | |||||||||
| Full circle swinging time | 11s | |||||||||
| Fqt Fuel Quantity | / | |||||||||
| Capacity Of The Fuel Tank | / | |||||||||
| Hydraulic Tank Capacity | / | |||||||||
